Understanding how a car brake system works is essential for vehicle safety and maintenance. The brake system ensures the car stops when needed, protecting drivers, passengers, and pedestrians.
A car brake system works when you press the brake pedal. This activates the master cylinder, creating hydraulic pressure. This pressure moves through brake lines to the calipers or wheel cylinders. The calipers squeeze brake pads against rotors or expand brake shoes against a drum to stop the car.
This extensive article will explain a car brake system’s key components and functions, how different brakes work, and common brake problems.
Table of Contents
Key Takeaways
- Press Brake Pedal: Starts the master cylinder. This creates hydraulic pressure. This is to begin the braking process.
- Hydraulic Pressure: Brake fluid travels through tubes, creating force to squeeze the stoppers and slow the car.
- Stop Car: Calipers squeeze brake pads on rotors or push brake shoes in drums to stop the vehicle.
Basic Components Of Car Brake System
The basic components of a car brake system work together to stop the vehicle safely. These include the brake pedal, master cylinder, brake lines, calipers, and brake pads or shoes. Each component has a specific role in ensuring the car slows down or stops when the brake pedal is pressed.

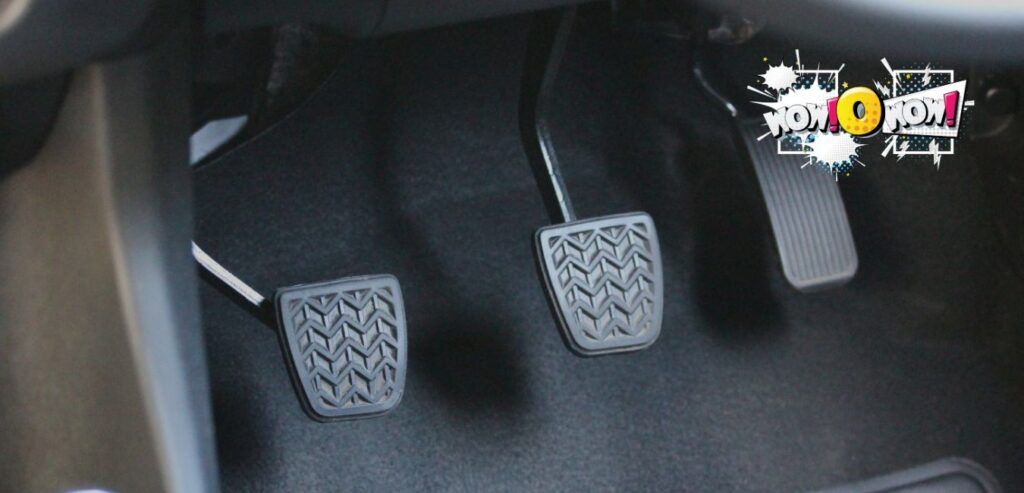

Brake Pedal
The brake pedal is the part of the car you press with your foot to make the car stop. When you press it, the pedal pushes a part called the master cylinder. The master cylinder sends a special fluid through tubes to the brakes on the wheels. This fluid makes the brakes press against the wheels, slowing down or stopping the car. It seems like a chain reaction that starts when you push the pedal.
Master Cylinder
The master cylinder is a part of the car that helps the brakes work. When you press the brake pedal, it pushes a rod inside the master cylinder. This rod squeezes a special fluid, creating pressure. This pressure travels through tubes called brake lines to each wheel. At the wheels, the pressure makes the brakes squeeze the wheels, helping the car slow down or stop. The master cylinder is essential for making sure the brakes work correctly.
Brake Lines
Brake lines are tubes in a car that carry a special fluid from the master cylinder to the brakes at each wheel. When you press the brake pedal, the master cylinder sends the fluid through these tubes. The fluid travels to the brake calipers or wheel cylinders, which use the pressure from the fluid to press the brakes against the wheels. This helps the car slow down or stop. Brake lines are essential for making sure the brakes work correctly.

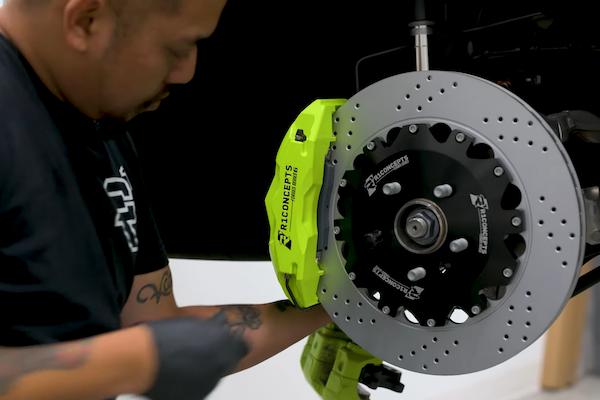

Brake Calipers
Brake calipers are essential parts of a car’s braking system. They hold the brake pads and pistons. When you press the brake pedal, the fluid creates pressure that moves the pistons inside the calipers. This movement makes the brake pads squeeze against the rotors, which are discs attached to the wheels. When the pads press against the rotors, they create friction that slows down or stops the car. Brake calipers help control the car’s speed safely.
Brake Pads And Rotors
Brake pads are parts of a car that help stop it by creating friction. They are made of a unique material that presses against the rotors: metal discs attached to the wheels. When you press the brake pedal, the brake pads squeeze the rotors. This squeezing creates friction, which slows down the wheels and stops the car. The brake pads and rotors work together to ensure the vehicle can stop safely and quickly.
Types Of Brake Systems
There are different brake systems in cars, each with unique parts and ways of working. The 3 main types are disc brakes, drum brakes, and anti-lock brakes. These systems help control the car’s speed and ensure it can stop safely. Understanding how they work can help you know more about car safety.
Disc Brakes
Disc brakes are found in many modern cars. They use brake pads to press against metal discs called rotors. This pressing creates friction, which slows down or stops the vehicle. Disc brakes are good at stopping the car quickly and handling heat, which means they work well even when used a lot. This makes them very reliable and safe for vehicles.
Drum Brakes
Drum brakes are a brake system in some cars, especially for the rear wheels. They use brake shoes, which are parts that push outward against a spinning drum attached to the wheel. When the brake shoes press against the drum, they create friction to slow down or stop the car. Drum brakes are less standard in new vehicles but are still used in some places because they are reliable and cost-effective.
Anti-Lock Braking System (ABS)
An anti-lock brake system (ABS) helps keep the car under control when braking hard. It stops the wheels from locking up, so they keep turning instead of skidding. This allows the driver to maintain car control and steer safely, even during emergency stops. ABS makes driving safer by reducing the chances of losing control when braking suddenly.
How Disc Brakes Work
Disc brakes help cars stop by using brake pads and rotors. When the driver presses the brake pedal, the brake pads squeeze against the spinning rotors attached to the wheels. This squeezing creates friction, which slows down the wheels and stops the car. Disc brakes are efficient and reliable.
Pressing The Brake Pedal
When the driver presses the brake pedal, a pushrod moves. The pushrod is connected to the master cylinder. This action pushes fluid inside the master cylinder, creating pressure. This pressure travels through brake lines to the brakes on each wheel. The pressure makes the brakes press against the wheels, helping to slow down or stop the car.
Activating The Master Cylinder
Activating the master cylinder changes the driver’s foot pressure into hydraulic pressure. When the brake pedal is pressed, the pushrod, which presses on the master cylinder, moves. Inside the master cylinder, this pressure pushes brake fluid through the brake lines. This hydraulic pressure is then sent to the brakes at each wheel, making them work to slow down or stop the car. The master cylinder is critical for the brakes to function correctly.
Hydraulic Pressure
Hydraulic pressure is created when the brake pedal is pressed, and the master cylinder pushes brake fluid. This pressure moves through the brake lines, tubes filled with brake fluid. The pressure travels to the brake calipers at each wheel. When the calipers receive this pressure, they press the brake pads against the rotors. This action slows down or stops the car. Hydraulic pressure ensures the brakes work evenly and effectively.
Clamping The Rotors
When the brake fluid’s pressure reaches the calipers, they squeeze the brake pads against the rotors, which are discs attached to the wheels. When the brake pads press against the spinning rotors, they create friction. This friction slows down the spinning of the rotors, which slows down or stops the car. The calipers and brake pads work together to ensure the vehicle can stop safely and effectively.
How Drum Brakes Work
Drum brakes help stop a car by using brake shoes and a drum. When the driver presses the brake pedal, hydraulic pressure pushes the brake shoes outward against the inside of a spinning drum attached to the wheel. This creates friction, which slows down or stops the car. Drum brakes are often used on rear wheels.
Pressing The Brake Pedal
When the driver presses the brake pedal in a car with drum brakes, it activates the master cylinder. The master cylinder then pushes brake fluid through the brake lines. This fluid creates hydraulic pressure that travels to the drum brakes at each wheel. The pressure causes the brake shoes to press against the spinning drum, creating friction and slowing down or stopping the car. This process ensures the brakes work effectively.
Activating The Master Cylinder
Activating the master cylinder creates hydraulic pressure. When the brake pedal is pressed, it pushes a rod into the master cylinder. This action forces brake fluid through the brake lines. The fluid’s movement generates pressure, which is then sent to the brakes at each wheel. This hydraulic pressure makes the brakes work, helping the car to slow down or stop safely.
The master cylinder is crucial for making the braking system function properly.
Hydraulic Pressure
Hydraulic pressure is created when the master cylinder pushes brake fluid. This pressure travels through the brake lines, tubes carrying the fluid. The fluid moves to the wheel cylinders in the drum brakes. When the wheel cylinders receive this pressure, they push the brake shoes outward. The brake shoes press against the spinning drum, creating friction to slow down or stop the car. This process ensures the brakes work correctly.
Expanding The Brake Shoes
Expanding the brake shoes happens when the wheel cylinders receive hydraulic pressure. This pressure pushes the brake shoes outward. The brake shoes then press against the inside of the spinning drum attached to the wheel. This pressing action creates friction, which helps slow down or stop the car. The friction between the brake shoes and the drum makes the brakes work effectively, ensuring the car can stop safely.
Role Of Brake Fluid
Brake fluid is a unique liquid in cars that helps the brakes work. Pressing the brake pedal, the brake fluid moves through tubes to the brakes on each wheel. It creates pressure that makes the brakes press against the wheels, helping the car slow down or stop. Brake fluid is essential for safe braking.
Hydraulic Medium
Brake fluid acts as the hydraulic medium in a car’s braking system. When the brake pedal is pressed, the master cylinder pushes this fluid through tubes called brake lines. The fluid carries the pressure created by the master cylinder to the brakes at each wheel. This pressure makes the brakes work, helping to slow down or stop the car. Without brake fluid, the pressure wouldn’t reach the brakes, and the car couldn’t stop safely.

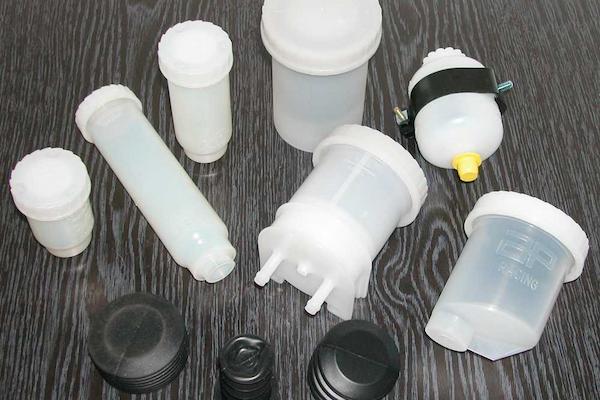

Fluid Reservoir
The fluid reservoir is a container in the car that holds brake fluid. It makes sure there is always enough fluid for the braking system. When you press the brake pedal, the master cylinder takes the brake fluid from the reservoir and sends it through the brake lines. This helps create the pressure needed to make the brakes work. The fluid reservoir is essential for stabilizing the braking system properly and safely.
Maintaining Pressure
Maintaining pressure in the braking system requires brake fluid to be in good condition and at the right level. When the brake fluid is dirty or insufficient, the brakes won’t work correctly. The fluid creates the pressure to activate the brakes when pressing the pedal. Regularly checking and changing the brake fluid ensures the hydraulic pressure stays consistent, helping the car stop safely every time.
Anti-Lock Braking System (ABS)
An anti-lock brake system (ABS) is a safety feature that helps prevent the wheels from locking up during hard braking. This means the wheels keep turning, allowing the driver to maintain control and steer the car. ABS helps reduce the risk of skidding and improves safety when stopping quickly.
Purpose Of ABS
The purpose of ABS is to keep the car’s wheels from locking up during emergency braking. When you press the brake pedal hard, ABS quickly pumps the brakes on and off. This prevents the wheels from skidding and helps them keep turning. By doing this, ABS maintains traction with the road and allows the driver to steer the car, making it safer to stop quickly without losing control.
How ABS Prevents Lock-Up
ABS prevents wheel lock-up by using sensors to check how fast each wheel spins. When the sensors detect that a wheel is about to stop spinning and skid, the ABS quickly adjusts the brake pressure. It reduces the pressure slightly and then increases it again rapidly. This on-and-off action happens often each second, keeping the wheels turning and preventing skidding. This helps the driver maintain control of the car during sudden stops.
ABS Components
ABS has several essential parts that help it work. Wheel speed sensors are placed at each wheel to check how fast they spin. The electronic control unit (ECU) is like the brain of the ABS, using information from the sensors to decide what to do. Hydraulic valves control the brake pressure at each wheel. When the ECU detects a wheel about to skid, it signals the valves to adjust the pressure, preventing lock-up and controlling the car.
ABS Operation Cycle
During an ABS event, the system works quickly to keep the car under control. When the brakes are applied hard, the ABS sensors detect if a wheel is about to skid. The electronic control unit (ECU) then signals the hydraulic valves to apply and release the brake pressure rapidly, many times each second.
By doing this, ABS prevents the wheels from locking up, allowing the driver to steer and stop the car safely without skidding.
Common Brake Problems
Common brake problems can affect how well your car stops and can be a safety concern. Issues like squeaky brakes, a soft brake pedal, or vibrations when braking are signs that something can be wrong. Understanding these and other problems helps you know when to get your brakes checked and fixed to keep your car safe.
Squeaky Brakes
Squeaky brakes often cause problems with your car’s brake pads or other parts. The noise can happen because the brake pads are worn out and must be replaced. Another reason could be that the brake parts, like the pads and rotors, aren’t adequately lubricated, causing them to make noise when they rub together. When you hear squeaky brakes, it’s essential to get them checked by a mechanic to ensure your car stays safe.

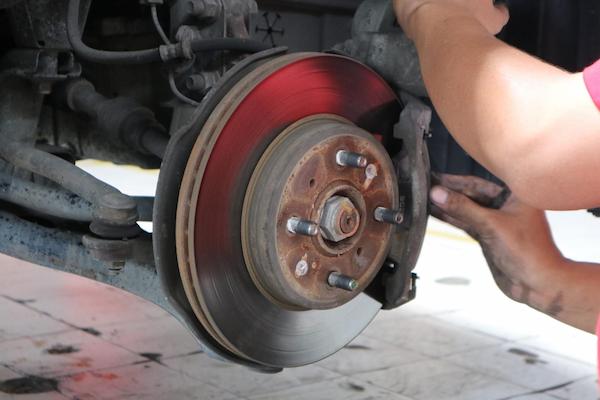

Brake Fade
Brake fade happens when the brakes get too hot and don’t work either. This can occur when you use the brakes quickly, like going down a long hill or stopping frequently. When the brakes overheat, the friction that typically prevents the car decreases, making it harder to slow down or stop. Brake fade can be dangerous, so giving the brakes time to cool down and avoid heavy braking when possible is essential.
Soft Brake Pedal
A soft brake pedal means it feels squishy or goes down too quickly when pressed. This can happen when the air in the brake lines stops the brake fluid from creating the needed pressure. It can also mean a leak in the hydraulic system, causing brake fluid to escape. Both issues make it harder to stop the car safely. When the brake pedal feels soft, it’s crucial to have the brakes checked by a mechanic right away.
Pulling To One Side
When a car pulls to one side during braking, it means something is wrong with the brakes on one side. This can happen when the brake pads on one side are more worn out than the other. It could also be because of a problem with the brake caliper, which cannot work correctly. These issues cause uneven braking, making the car veer to one side. When this happens, checking and fixing the brakes is essential to ensure safe driving.
FAQs
1. How Do Electronic Car Brake Force Distribution (EBD) Systems Work?
Electronic Brake Force Distribution (EBD) systems automatically adjust the brake force applied to each wheel. EBD uses sensors to monitor wheel speed and vehicle load when you brake. It then distributes the braking force to prevent skidding and improve stability, ensuring the car stops safely.
2. What Is The Purpose Of A Car Brake Caliper?
The purpose of a car brake caliper is to squeeze the brake pads against the rotors when you press the brake pedal. This action creates friction, which slows down or stops the car. Brake calipers are essential for effective braking and ensuring the vehicle can be controlled safely.
3. What Is The Function Of The Master Cylinder In A Car Brake System?
The master cylinder’s function in a car brake system is to transform the force from the brake pedal pressing into hydraulic pressure. This pressure pushes brake fluid through the brake lines to the brakes at each wheel. This causes the car to slow down or stop safely and effectively.
Conclusion
A car’s brake system is crucial for safe driving. Knowing how it works and spotting common problems can help keep it working well. The brake system includes parts like the brake pedal, master cylinder, brake lines, calipers, pads, and rotors.
Each part plays a vital role in slowing down or stopping the car. When you notice issues like a car squeak when I brake, a soft brake pedal, or the car pulling to one side, it’s vital to check the brakes.
Regular maintenance, like checking the brake fluid and replacing worn-out brake pads, keeps the brake system in good shape. Taking care of your car’s brakes ensures they work correctly and keep you safe.
